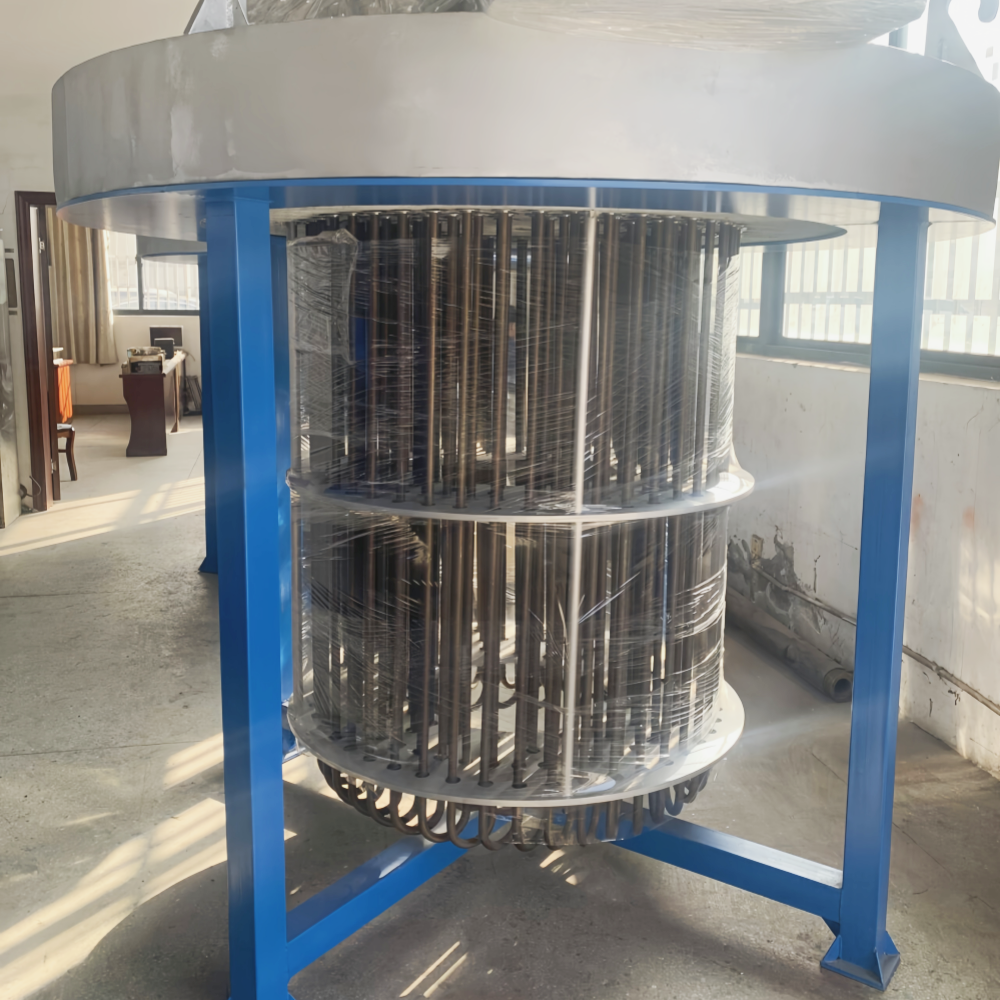

JS-WB-160-380Electric heating oven
Electrical heating oven JS-WB-160-380(380V/160KW) PRODUCT DESCRIPTION Electric heating oven is a kind of equipment used for heating and treatment of packaging, which is often used for packaging pretreatment in food, medicine and other industries. Through electric heating, the packaging material reaches a certain temperature to improve the packaging effect or meet the specific process requirements. For example, in some food packaging process, heating can enhance the sealing of the packaging material to ensure the freshness period of the product. Electric heating oven usually includes the following parts: 1. Heating system: This is the core part of the oven, which generates heat through the electric heating wire or other heating elements. 2. Control system: used to adjust and control the temperature in the heating process, to ensure that the heating process is stable and reliable. 3. Delivery system: send the packaging material to be heated into and out of the baking area. 4. Safety protection device: including overheating protection, short circuit protection, etc., to ensure the safety of use. When selecting the electric heating oven, the heating efficiency, temperature control accuracy, equipment size and other factors should be considered according to the actual demand. At the same time, we should also pay attention to the safety performance and maintenance convenience of the equipment. During the use, the equipment instructions should ensure the safe and efficient completion of the heating treatment before packaging.

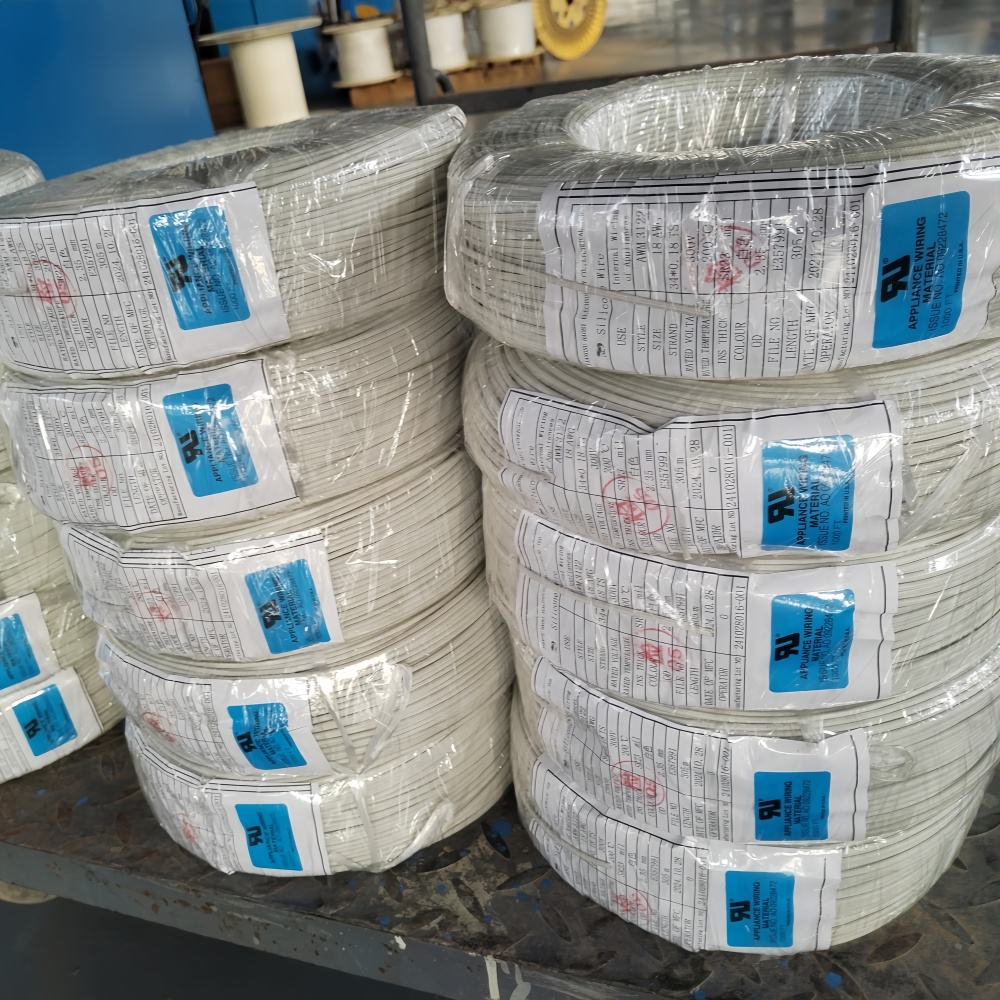

Silicone braid wire UL3122 18# WHITE
Silicone braid wire UL3122 18# WHITE SPECIFICATION: USE: Internal wiring of appliance STYLE: AWM3122 SIZE: 18AWG STRAND: 34*0.18TS RATED VOLTAGE: 330V RATED TEMPERATURE: 200℃ INS THICK: SR23 mil COLOUR: WHITE OUTSIDE DIAMETER: 2.35mm FILE NO.: E357991 LENGTH: 305M/COIL CHARACTERISTIC: High temperature resistance、low temperature resistance、anti-acid、anti-oil,anti-sepsis and moisture,fire and aging resistance, the inoxidizability, resistance of humidity,the fine electric insulation and flexible performance UL758,UL1581/2556,ROHS compliance. APPLICATION: Suitable for household appliances, lighting fixtures, electronic equipment, temperature sensors, aerospace, military products, metallurgical and chemical industry, communications, automobile and ships, electric power installation and other connecting lines.
Electrical heating oven
Electrical heating oven JS-WB-160-380(380V/160KW) PRODUCT DESCRIPTION Electric heating oven is a kind of equipment used for heating and treatment of packaging, which is often used for packaging pretreatment in food, medicine and other industries. Through electric heating, the packaging material reaches a certain temperature to improve the packaging effect or meet the specific process requirements. For example, in some food packaging process, heating can enhance the sealing of the packaging material to ensure the freshness period of the product. Electric heating oven usually includes the following parts: 1. Heating system: This is the core part of the oven, which generates heat through the electric heating wire or other heating elements. 2. Control system: used to adjust and control the temperature in the heating process, to ensure that the heating process is stable and reliable. 3. Delivery system: send the packaging material to be heated into and out of the baking area. 4. Safety protection device: including overheating protection, short circuit protection, etc., to ensure the safety of use. When selecting the electric heating oven, the heating efficiency, temperature control accuracy, equipment size and other factors should be considered according to the actual demand. At the same time, we should also pay attention to the safety performance and maintenance convenience of the equipment. During the use, the equipment instructions should ensure the safe and efficient completion of the heating treatment before packaging.

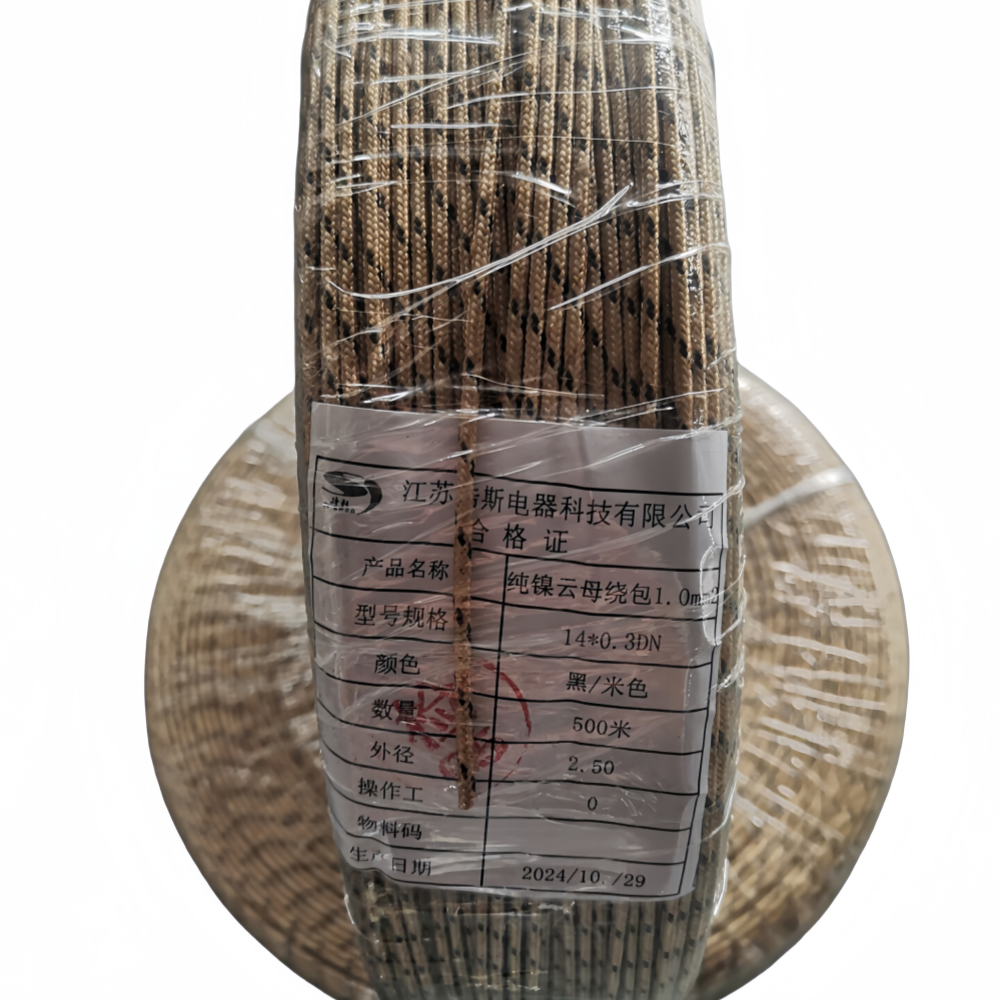

Pure nickel mica wrapped wire1.0mm²
Pure nickel mica wrapped wire1.0mm² PRODUCT DESCRIPTION: Rated Voltage: 300/500V Temperature Range: 0℃~ 500℃ Conductor: Pure nickel Insulator: Glass fiber Sheath: Fiberglass Lapping: Mica tape Available color: Black-Brown-Red-Yellow-Green-Blue-White,etc. CHARACTERISTIC: High and low temperature resistance、acid-proof、alkali-resisting,oil resistance,combustion resistance, aging,weather resistance, mold resistance, and excellent flexibility and electric insulation,meeting the requirements of GB12666.6-90. APPLICATION: Mainly used for fire control,communications, airport,subways,hospitals,railway stations,shopping malls,entertainment venues,residence,high-rise building,chemical industrial, coal mining,smelting,mining and other places of communications and electric power.

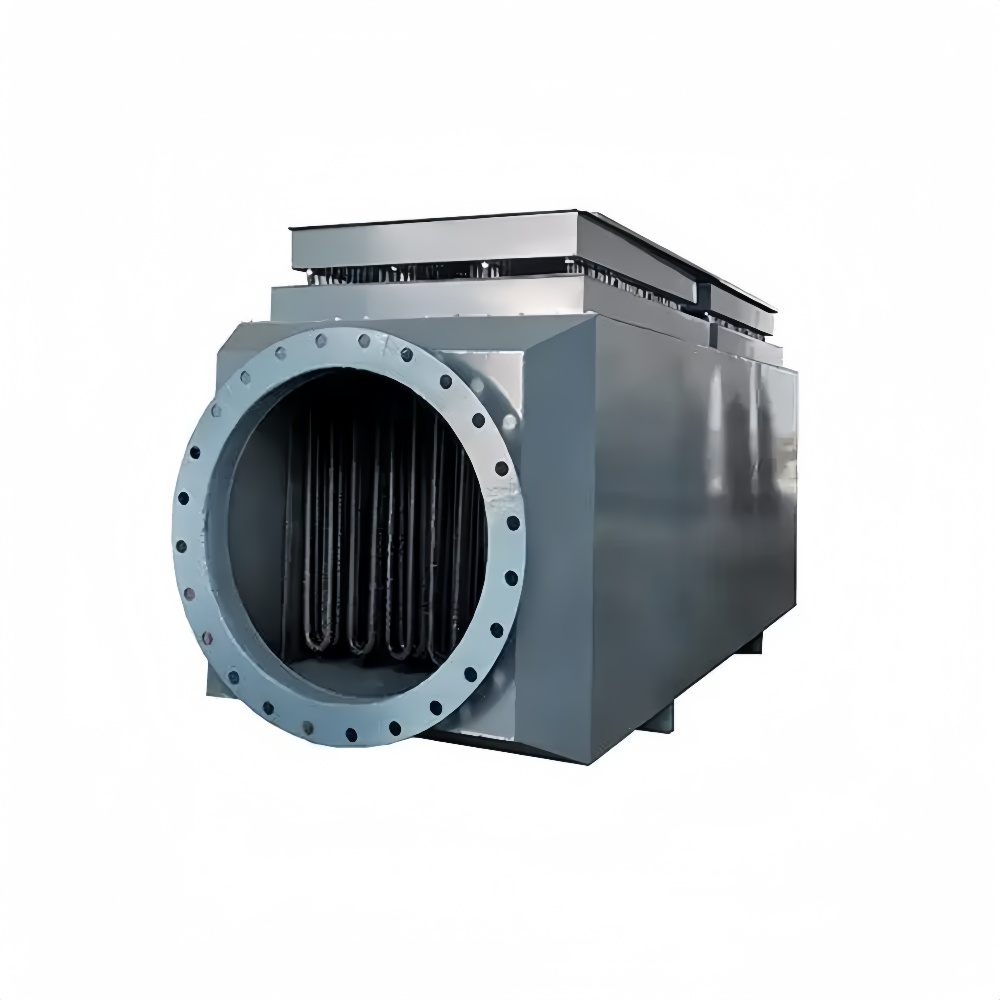

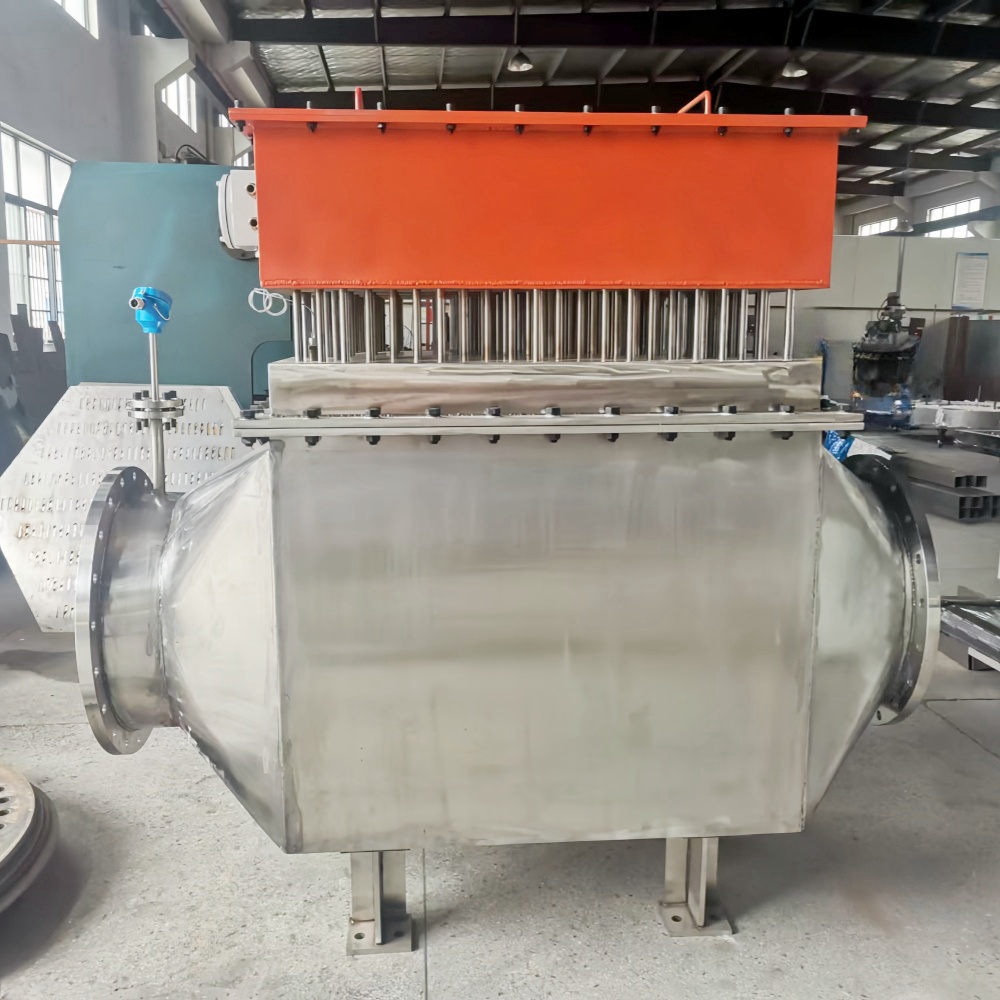

AIR DUCT ELECTRIC HEATER
Air Duct electric heater Brief introduction The air duct heater is mainly used for air heating in the air duct, and the specifications are divided into three forms: low temperature, medium temperature and high temperature. Low temperature type can be directly installed on the air duct, and the medium temperature type, high temperature type due to the different structure, in the outer wall of the channel to the heater junction box with 100mm thick insulation material, on the one hand to reduce the external heat dissipation of the whole channel, on the other hand also reduce the temperature in the wiring cavity. Air duct heater structure： 1.Air duct heater uses stainless steel heating pipe as the heating body； 2.Use carbon steel or stainless steel material as the support； 3.Adopt a combined connection mode for the composition. Its characteristics as below: 1,The electric heating pipe adopts the outer winding corrugated stainless steel belt, which increases the heat dissipation area and greatly improves the heat exchange efficiency. 2,The heater design is reasonable, small wind resistance, uniform heating, no high, low temperature dead Angle. 3,Dual protection, good performance. The temperature controller and fuse are installed on the heater, which can be used to control the air temperature of the air duct to work without no wind, to ensure that nothing is wrong.
Air Duct electric heater
Air Duct electric heater Brief introduction The air duct heater is mainly used for air heating in the air duct, and the specifications are divided into three forms: low temperature, medium temperature and high temperature. Low temperature type can be directly installed on the air duct, and the medium temperature type, high temperature type due to the different structure, in the outer wall of the channel to the heater junction box with 100mm thick insulation material, on the one hand to reduce the external heat dissipation of the whole channel, on the other hand also reduce the temperature in the wiring cavity. Air duct heater structure： 1.Air duct heater uses stainless steel heating pipe as the heating body； 2.Use carbon steel or stainless steel material as the support； 3.Adopt a combined connection mode for the composition. Its characteristics as below: 1,The electric heating pipe adopts the outer winding corrugated stainless steel belt, which increases the heat dissipation area and greatly improves the heat exchange efficiency. 2,The heater design is reasonable, small wind resistance, uniform heating, no high, low temperature dead Angle. 3,Dual protection, good performance. The temperature controller and fuse are installed on the heater, which can be used to control the air temperature of the air duct to work without no wind, to ensure that nothing is wrong.

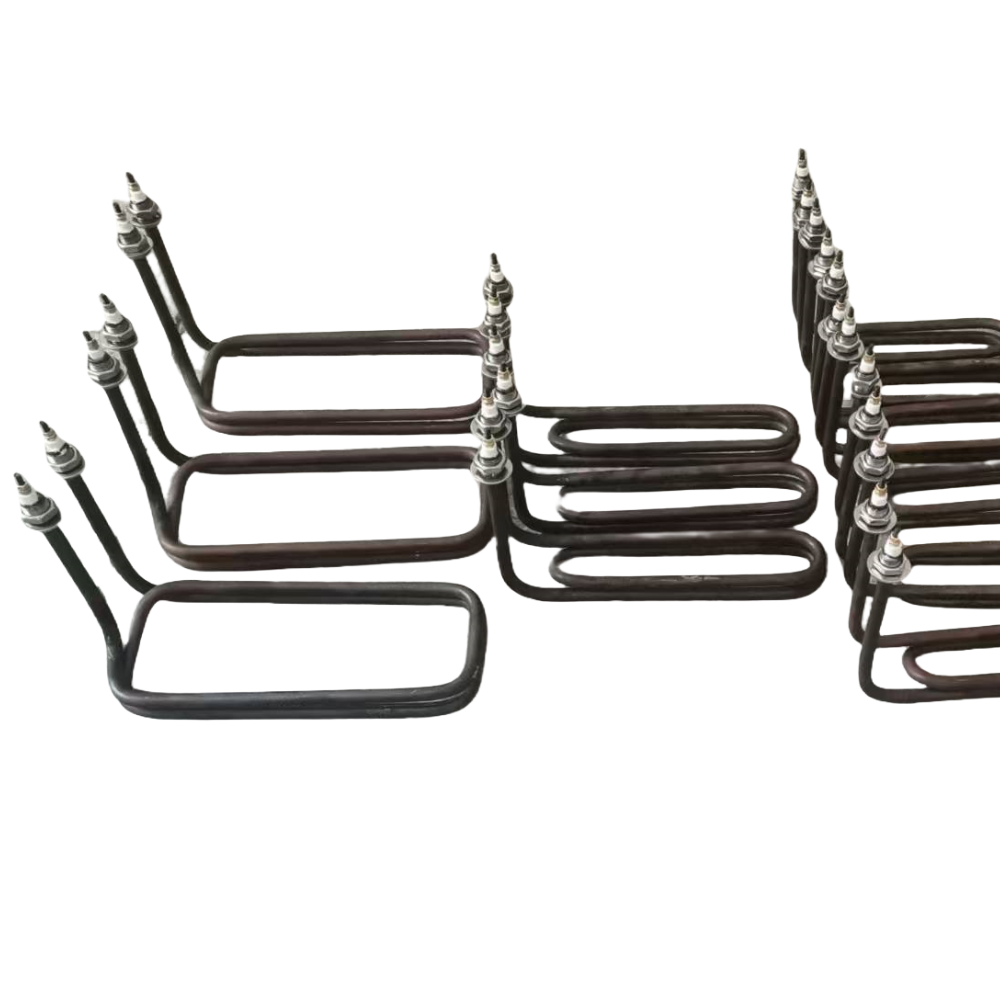

R6/R3 asphalt machine-heating pipe
R6/R3 asphalt machine-heating pipe High quality R6/R3 asphalt machine-heating pipe High performance R6/R3 asphalt machine-heating pipe Cost-effective R6/R3 asphalt machine-heating pipe Brief introduction The R6 / R03 asphalt machine is a kind of equipment used for asphalt heating, and the heating pipe is a very important part of this kind of machine. The main function of the heating pipe is to generate heat through electric energy, and then to heat the asphalt. Selection and maintenance of the heating pipe is very important to ensure the efficient operation of the asphalt machine. The choice of heating pipe : 1. Material: Heating pipe is usually made of stainless steel, because stainless steel has good corrosion resistance and high temperature resistance. 2.Power: Select the appropriate heating pipe power according to your specific needs. The greater the power, the faster the heating speed, but the energy consumption will also increase. 3.Length and diameter: The size of the heating pipe shall match the design of the asphalt machine to ensure uniform heating. 4.Insulation performance: Good insulation can improve safety and efficiency. Maintenance and precautions: 1,Check the heating tube regularly for signs of damage or corrosion. If necessary, please replace it promptly. 2,Make sure that there is no flammable material around the heating tube to prevent fire. 3,When cleaning or maintaining the heating pipe, please be sure to disconnect the power supply first to avoid the electric shock accident. 4,Proper operation and maintenance can extend the service life of the heating pipe, and maintain the best working condition of the asphalt machine.

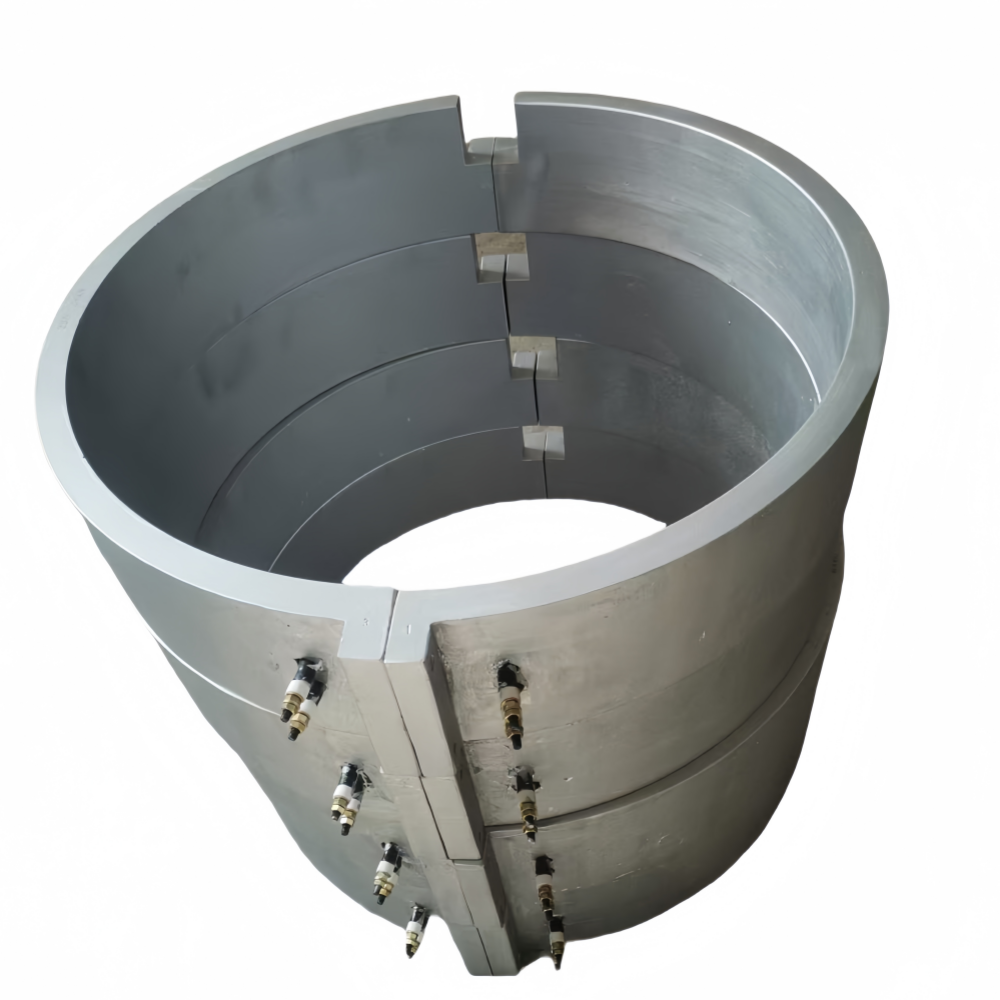

Cast Aluminium heating ring
Cast Aluminium heating ring High quality Cast Aluminium heating ring High performance Cast Aluminium heating ring Cost-effective Cast Aluminium heating ring Brief introduction Cast aluminum electric heating ring is a tubular electric heating element, the element bending molding, into the mold casting aluminum into various products. It can be closely fitted with the heating body, uniform heating, good thermal conductivity, long service life and other characteristics. This product is currently one of the more ideal heaters at home and abroad. According to user needs can add the insulation layer outside the heater, higher thermal efficiency, can save about 20% electricity. Mainly used for plastic machinery, oven, water boiler, pipe and heating up of a non-corrosive liquid. Technical parameter: 1. Conditions: ambient temperature-20℃ ~ + 60℃; relative humidity <80%. 2, Electrical strength: can be tested by voltage 1500V,50 HZ, sinusoidal AC voltage withstand test, voltage withstand 1M1N no breakdown phenomenon. 3. Leak current: <0.5MA. 4, Insulation resistance: > 2 MΩ. 5, Ground resistance: <0.1 Ω. 6, Power deviation value: + 5%~ -10%. 7, Temperature resistance degree: installed on the surface temperature of the machine can be nearly 400℃. Application Widely used in plastic machinery, mold, cable machinery, alloy die casting machine, pipeline, chemical industry, rubber, petroleum and other equipment. It is mainly used for plastic industry injection molding machine, extruder and blowing molding machine heating, and can also be used for reactor, melt pipe and other chemical field heating.
